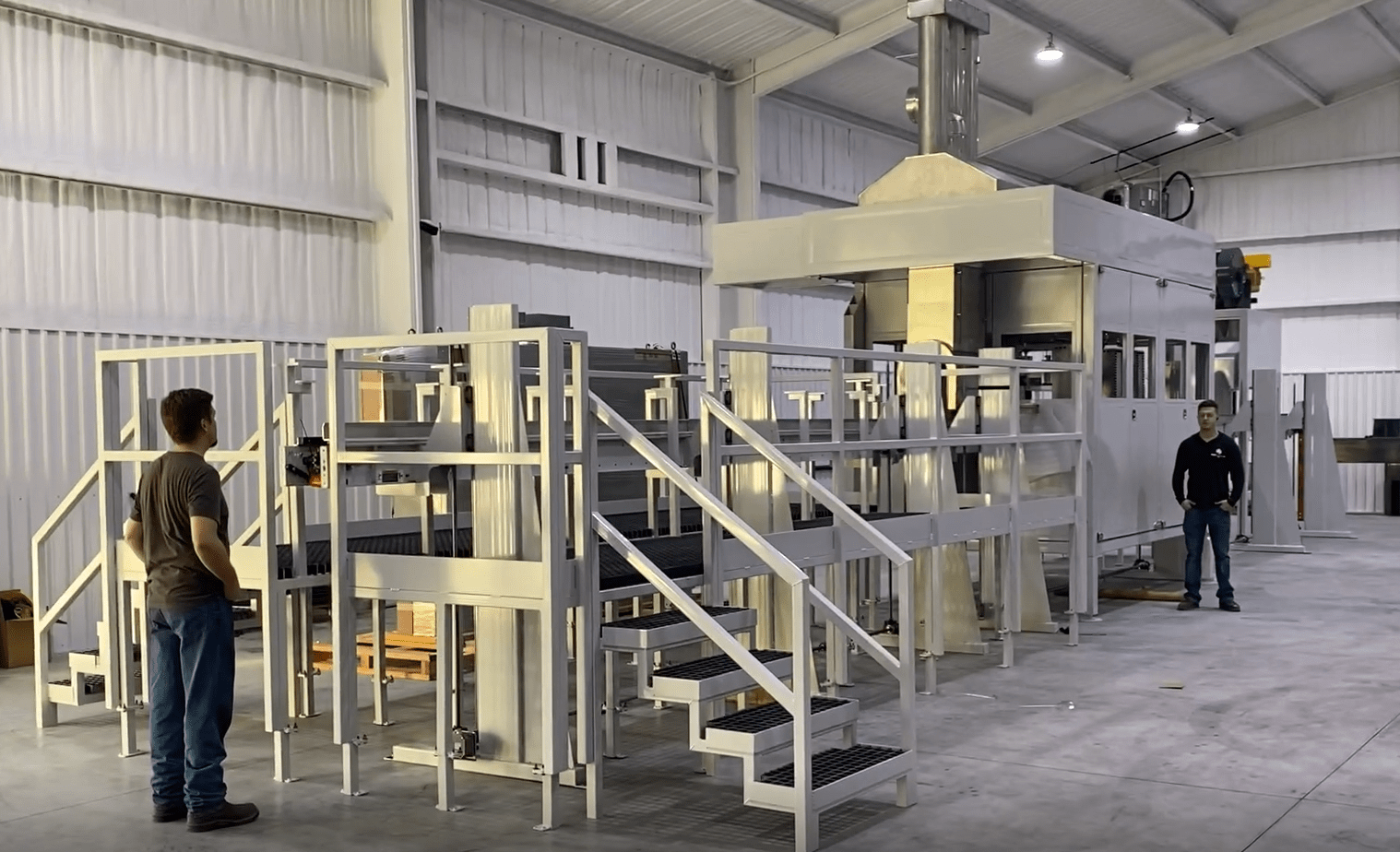

ABS Gen VI In-Line Evaporator System
Evaporator coil brazing done like never before.
Cutting-Edge Equipment for Brazing Aluminum Evaporator Coils
We are Committed to Quality and Efficiency
Auto Brazing Systems is not only equipped with specialized machines for brazing aluminum condenser coils, but we also take pride in having an in-line evaporator system for brazing aluminum evaporator coils that never skimp on quality.
Depending on your specifications, we can produce three to four perfectly brazed coils per minute. In addition, their height value can range from 12 to 52 inches, plate to plate. This means we can make 180 to 240 coils per hour or 1,440 to 1,920 per standard, eight-hour workday.
Video can’t be displayed
This video is not available.
We Deliver Precisely Engineered Solutions

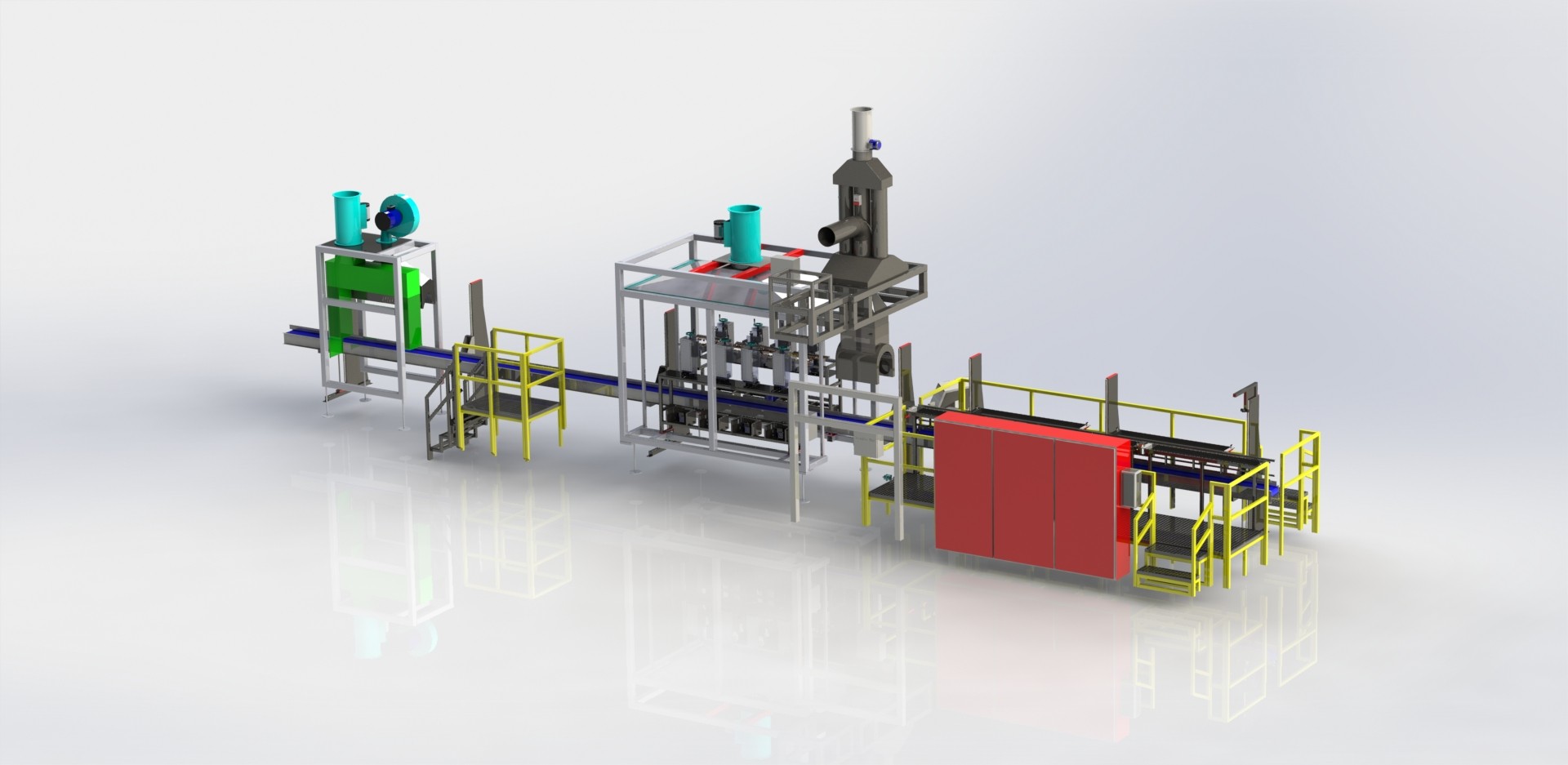

Our company’s in-line evaporator system for aluminum brazing consistently delivers precisely engineered coils that meet all your design needs. Using this system involves the following steps:
- The system operator will select what size evaporators will be brazed. This ensures that no matter the size of the coil, it will stay in the center of the burner’s flame.
- Mass flow controllers will mix the air and gas feeding through the system to each burner zone in a perfect ratio measured by molecule.
- The system will monitor the interior temperature of its brazing chamber. An adjustable exhaust damper connected to a motor and VFD will open or close to release or retain hot air in the system. This maintains the overall temperature within a few degrees.
- The evaporator coil will run through a cooler to bring it down to roughly room temperature before being safely loaded into a thermal degreaser.
Contact us to learn more about our brazing equipment and services.
